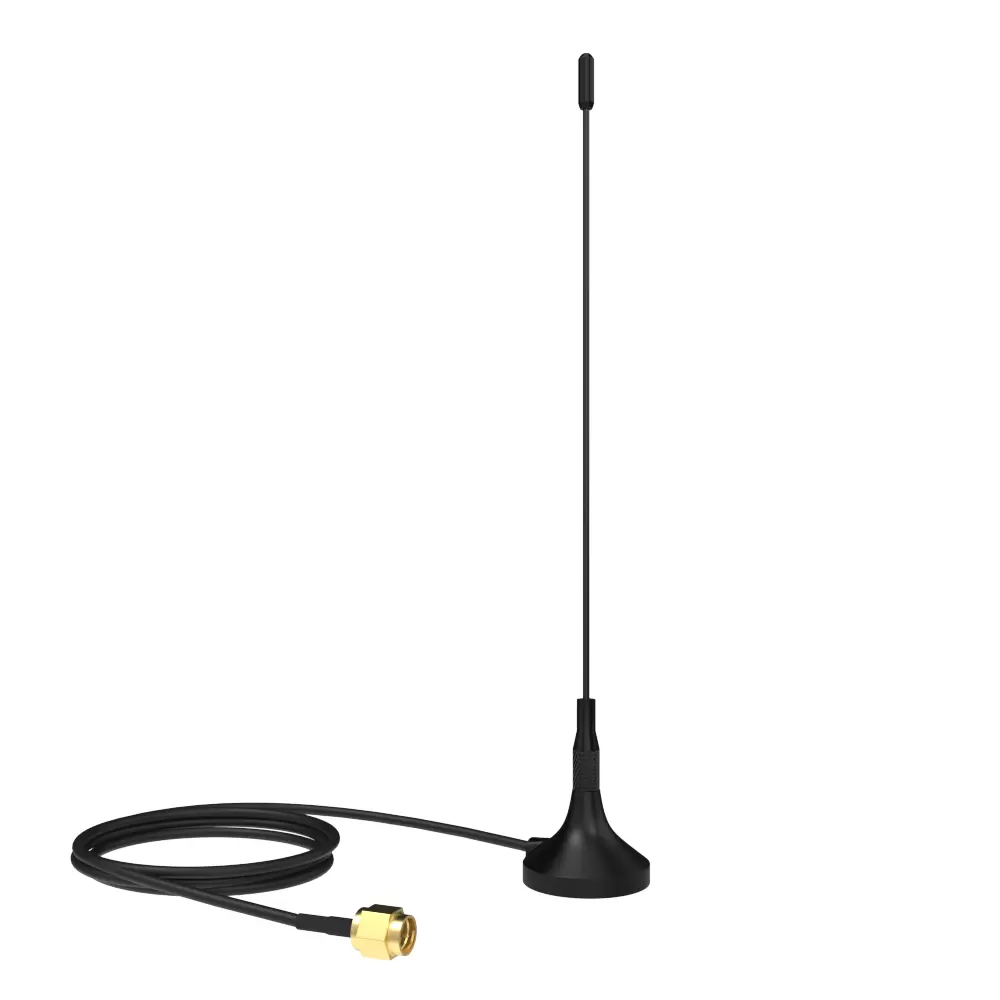

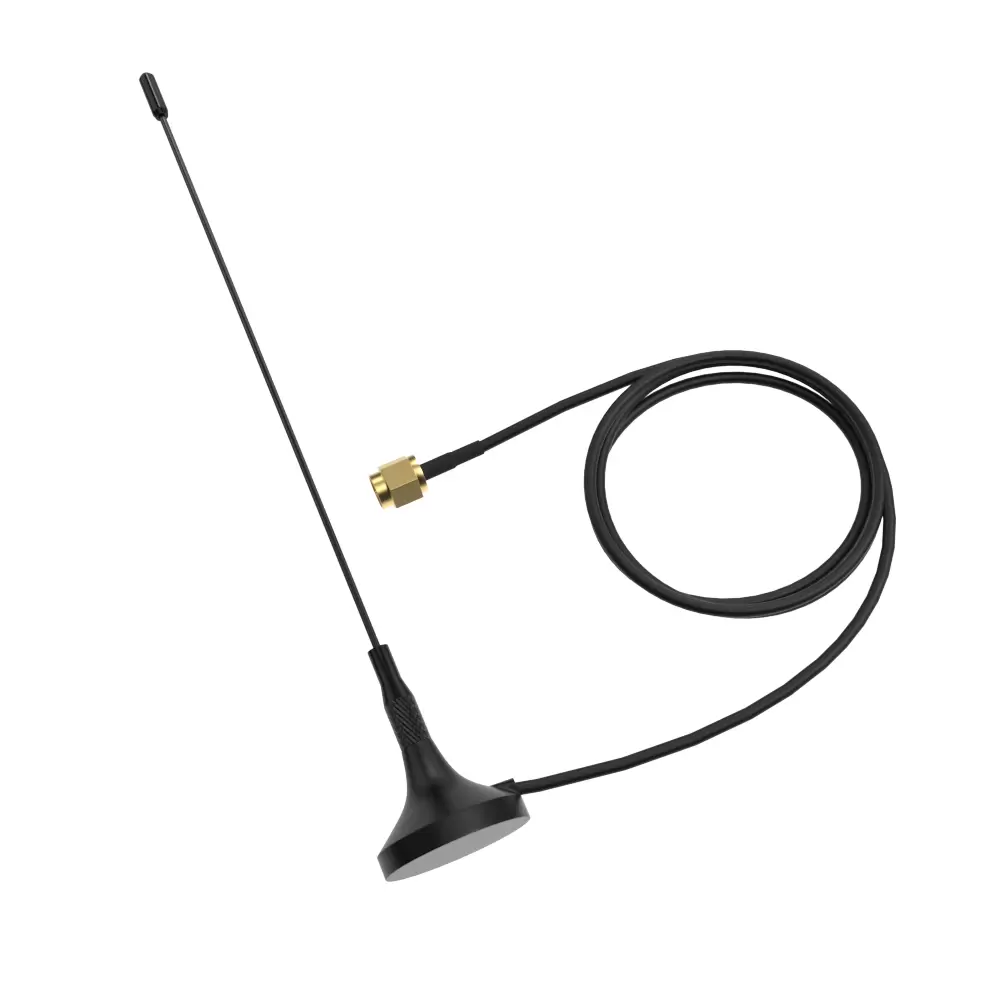

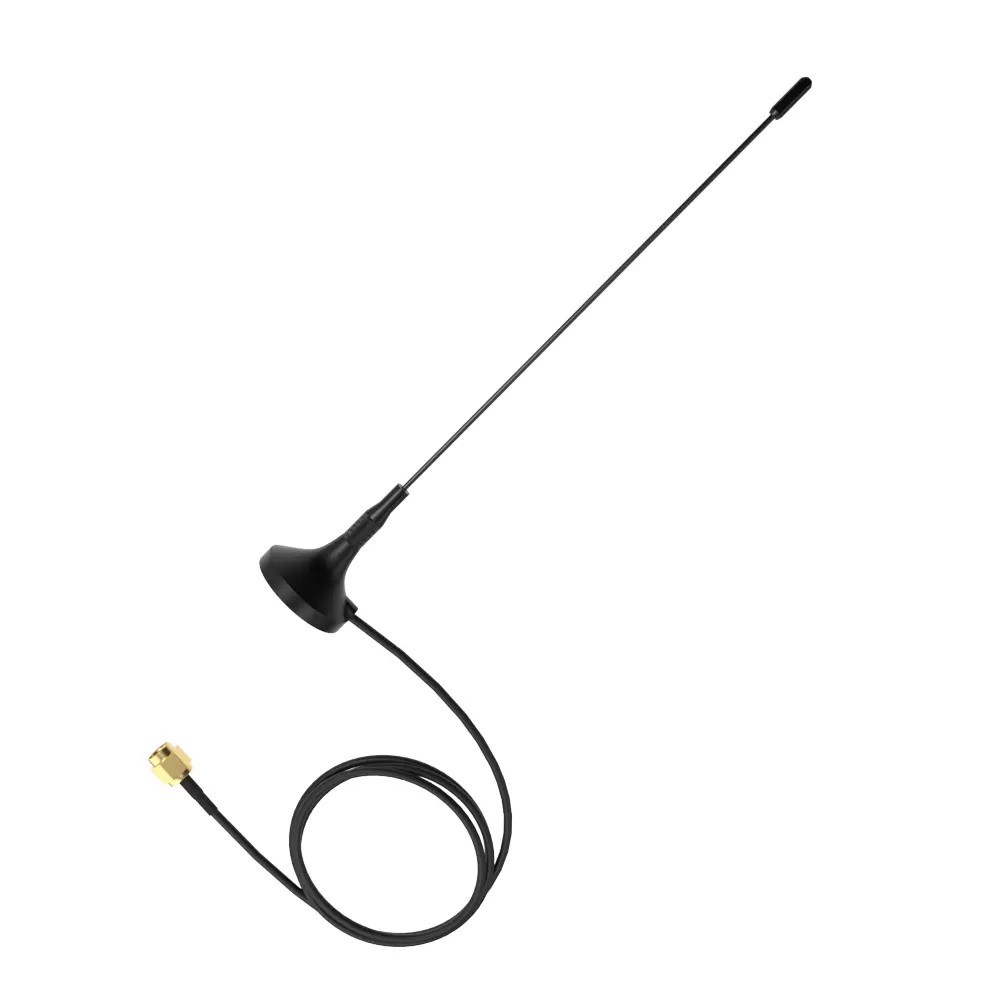

SW433-ZXPXM: 433MHz Small Sucker Antena
SW433- Z XPX M , Antena Small Sucker, projetada especialmente para a comunicação sem fio de 433MHz , possui boa vswr, estrutura engenhosa, instalação fácil, desempenho estável, com boa capacidade anti-vibração e antienvelhecimento .
Faixa de frequência: 433±10 MHz

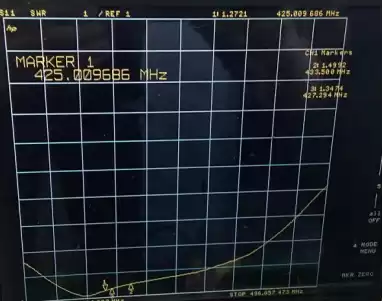

ROE: ≤ 1,5
Ganho: 3,0 dBi
Impedância de entrada: 50 Ω
Potência máxima: 10 W
Polarização: polarização vertical

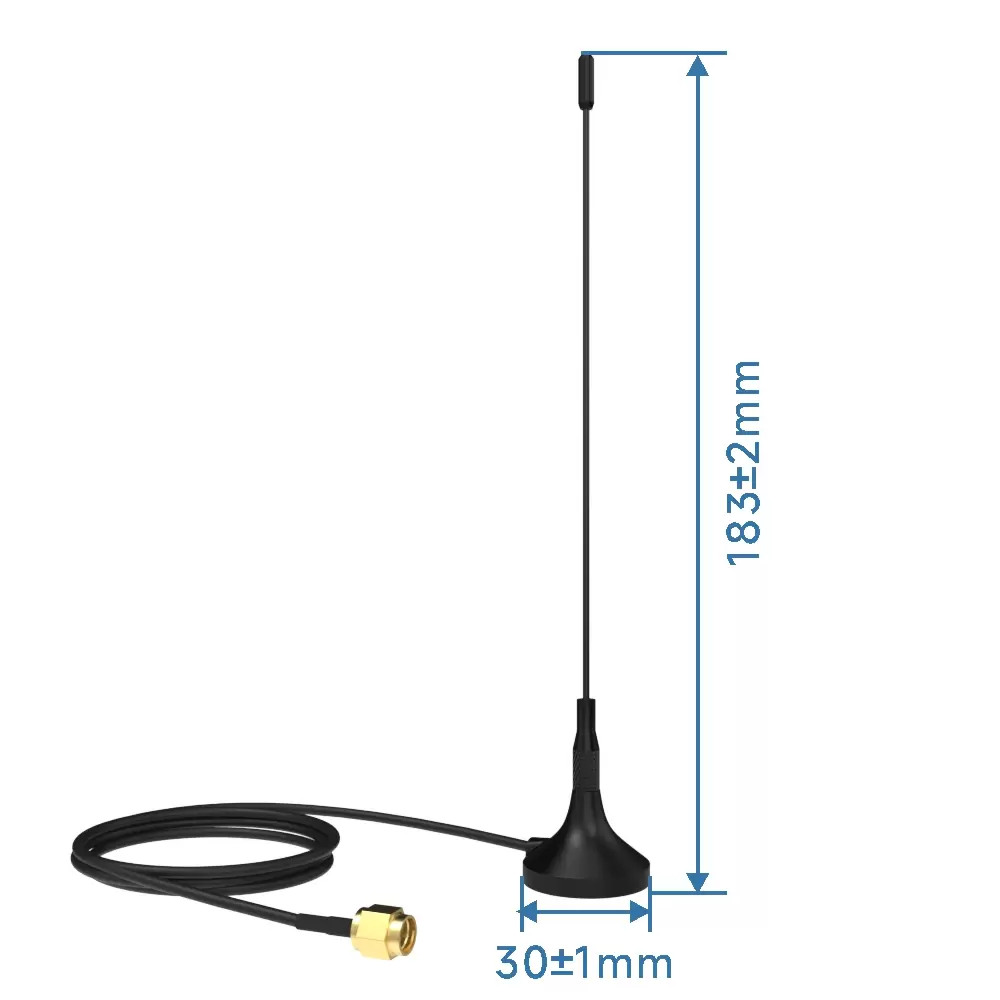

Altura: 183 mm
Formulário de interface: SMA-J
Comprimento do cabo: antena opcional de 1 ~ 6m
Cor: preto
